Widget specific customization - Energy summary

Energy summary widget provides few extra customizations.

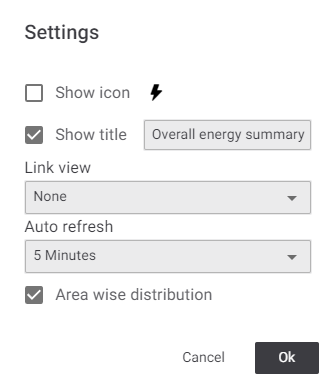

Settings show title area wise distribution
Settings show title area wise distribution

  • Link view: Link view provides the ability to link to other views from this widget. If configured, a link appears on the widget. A clicking on the link takes you to the configured view. The selectable views are:

    • None

    • Overview

    • Energy summary

    • Faults

    • Lighting control

    • User management

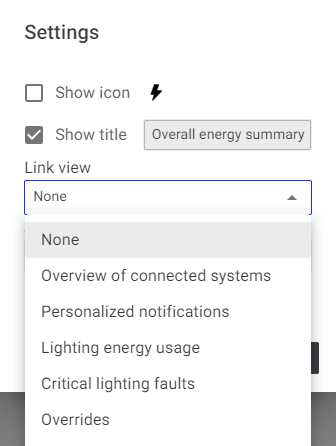

      Settings link view
      Settings link view

      The default value is None.

  • Auto refresh: Select how frequently widget information must be refreshed. The available time frequency is 1, 2 and 5 minutes. The user can also disable auto refresh. The default value is 5 minutes.

    The refresh is from the internal database of the application and not from external system like Interact City.

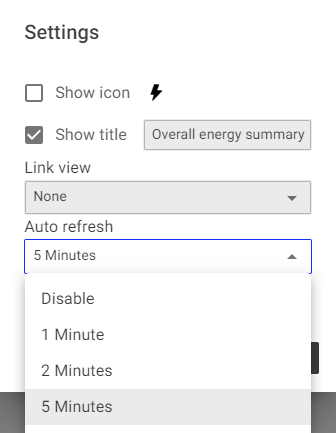

    Settings auto refresh
    Settings auto refresh

  • Area wise distribution: If enabled, the widget shows the area wise energy distribution. If disabled, it shows only the overall energy summary. By default, it is enabled.

    Settings show title area wise distribution
    Settings show title area wise distribution
